Automated Extractions
Specializing in process automation, material conveyors, mixing tanks, filtering & drying, storage tanks, winterizing, and solvent recovery.
Production Extraction Plants
Automated Extractions offers a wide variety of extraction production lines to meet the tightest requirements. Our systems are designed for high throughput, minimum waste, safety, and repeatability.
The above system just one example of a system we designed to process 300 gallons of HEMP / solvent through a 1-micron filter press in 30 minutes. The plant material is then ejected from the filter as dried cakes with minimal solvent retention.
Centralized process controls
Our control systems integrate to all of the production processes. They can act independently or be centralized and networked.
Material conveying system integration
We partner with several conveying manufacturers for various material conveying requirements.
Mixing tanks, blending tanks, and pump systems
Mixing tank designs are available and customizable. We incorporate pumps and valves for process flow and transfers.
Filter press designs for plant matter separation to 1 micron
An integrated filter press is ideal for maximizing the extraction and minimizing waste when separating plant matter from solvent.
316-Stainless steel transfer and storage tanks
We manufacture tanks for various purposes including mixing, blending, carbonation, and storage.
Solvent recovery systems
Distillation systems for solvent recovery and extraction.

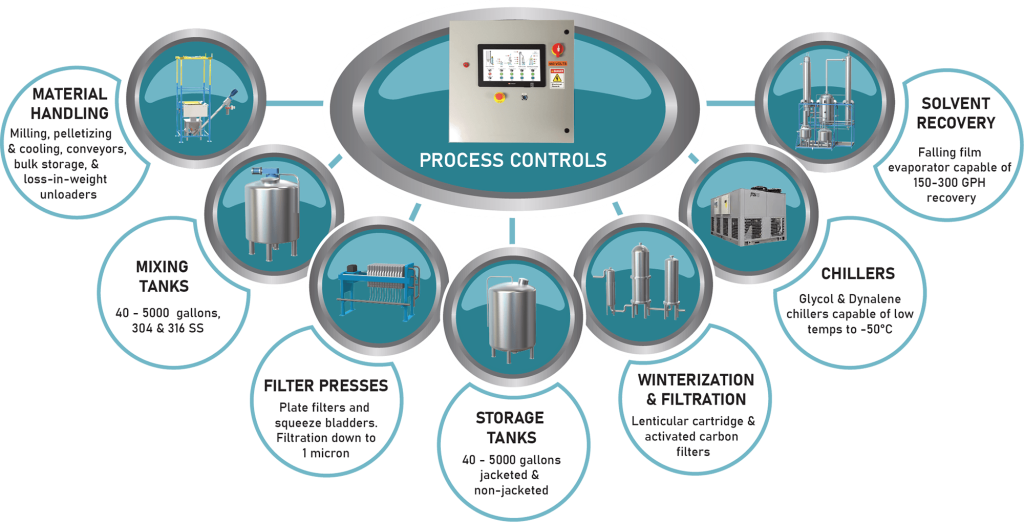

Full Process Automation
Automated Extractions offers a full range of control solutions for your processes. Plant wide or individual process control technology is our specialty.
An integrated automation package is critical for a production line for maximized efficiency. Our control packages are designed for increased production, a high level of repeatability, quality control, safety, and labor reduction.
Touch Screen Controls
Designed and programmed for your process requirements.
UL & cUL 698-A Certification
Our panel shop is UL and cUL certified. We are also 698-A certified for hazardous locations.

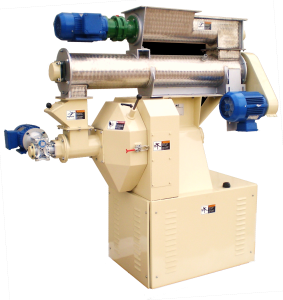

Material Handling
Automated Extractions has partnerships with some of the best manufacturers in the world for material conveying. We integrate this equipment into our processes for milling, conveying, and storage.
Hammer Mills
Designed for milling many materials including hemp and other cannabis products
Bulk bag unloaders, screw and auger conveyors
Bulk storage and bulk unloading. Ideal for loading material into a mixing tank or moving milled material to a storage tank. Explosion proof designs when applicable

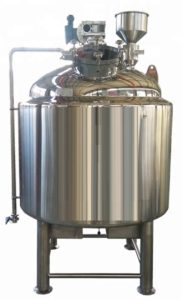

Mixing Tanks
Automated Extractions manufactures a variety of stainless-steel mixing tanks. You can choose from our standard designs or have us build your tank to your specifications. Typical uses are for solvent extractions and batch mixing.
304 and 316 Stainless Steel
Grade 316 stainless steel offers a higher level of corrosion resistance. It is a necessity when working with high proof ethanol extractions.
Explosion Proof Mixing Motor
Explosion proof mixing motors are available. These motors are necessary when working with high proof ethanol extractions or powders that are combustible.
Tank ports and drains designed for the application
Grade 316 stainless steel offers a higher level of corrosion resistance. It is a necessity when working with high proof ethanol extractions.
Filtration Presses
For solvent extractions such as ethanol, the maceration process uses ground-up plant material (such as hemp). This bio mass is then mixed so the solvent strips the oil out of the plant fibers. For hemp, this is CBD oil. The hemp oil/solvent is then run through a filter press to separate the biomass from the oil/solvent mixture. Our filter presses can be set up to filter down to 1 micron.
Pneumatic squeeze bladders ensure minimal waste
Simple cleaning via hydraulic plate rack
Quick filtration time (10 Gal. / min.) at 1 micron
Filtration down to 1 micron

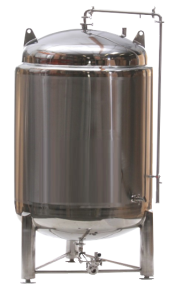

Storage Tanks
Our storage tanks can be manufactured in a variety of configuration. These tanks are used for liquid and slurry storage. They can also be utilized for beverage storage and as a carbonation vessel.
304 and 316 Stainless Steel
Grade 316 stainless steel offers a higher level of corrosion resistance. It is a necessity when working with high proof ethanol.
Tank ports and drains designed for the application
Ports for vacuum pressure relief valves, and liquid and solvent entry points. CIP (Clean in Place) ports are also installed in the tank to connect to the internal spray balls. Bottom ports are designed for complete tank discharge.
Sample ports
Sample valves can be placed on the tank sidewall.
Winterization & Dewaxing Process
In order to produce a pure concentrate product, it is desirable to remove plant lipids and waxes. We offer a variety of solutions that include chilling, heat exchangers, and filtration.

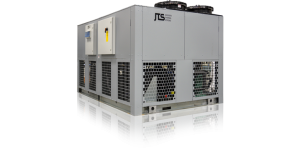

Chillers
Automated Extractions has partnered with several chiller manufacturers. We integrate these chillers into our processes with options to cool down to -80C.
Cooling Exchangers
In-line winterization and dewaxing processes are implemented using cooling exchangers.
Fitration Skids
Lenticular filters are used for in-line separation of the lipids and waxes utilizing specialized filter media.
